ZODIAK – Pavilion of Architecture, Warsaw, PL

Function: Cultural
Country: Poland
Category: Recollective Architecture
Architects: Szymon Kalata, Eliza Kalata, Mateusz Świętorzecki
Completion of design: 2015
Year completed: 2018
Nominated by: Anna Cymer
This is a new version of the modernist pavilion, demolished because of its bad condition. Happily, it has not become a caricature of modernism (as it is happening often) but become a successful modern interpretation of the shape from 60 years ago. It also brought a lot of added value by becoming the center of events related to architecture. So, a building created with respect to the style of the past creates a space for conversations about the history and future of architecture.
Project Description

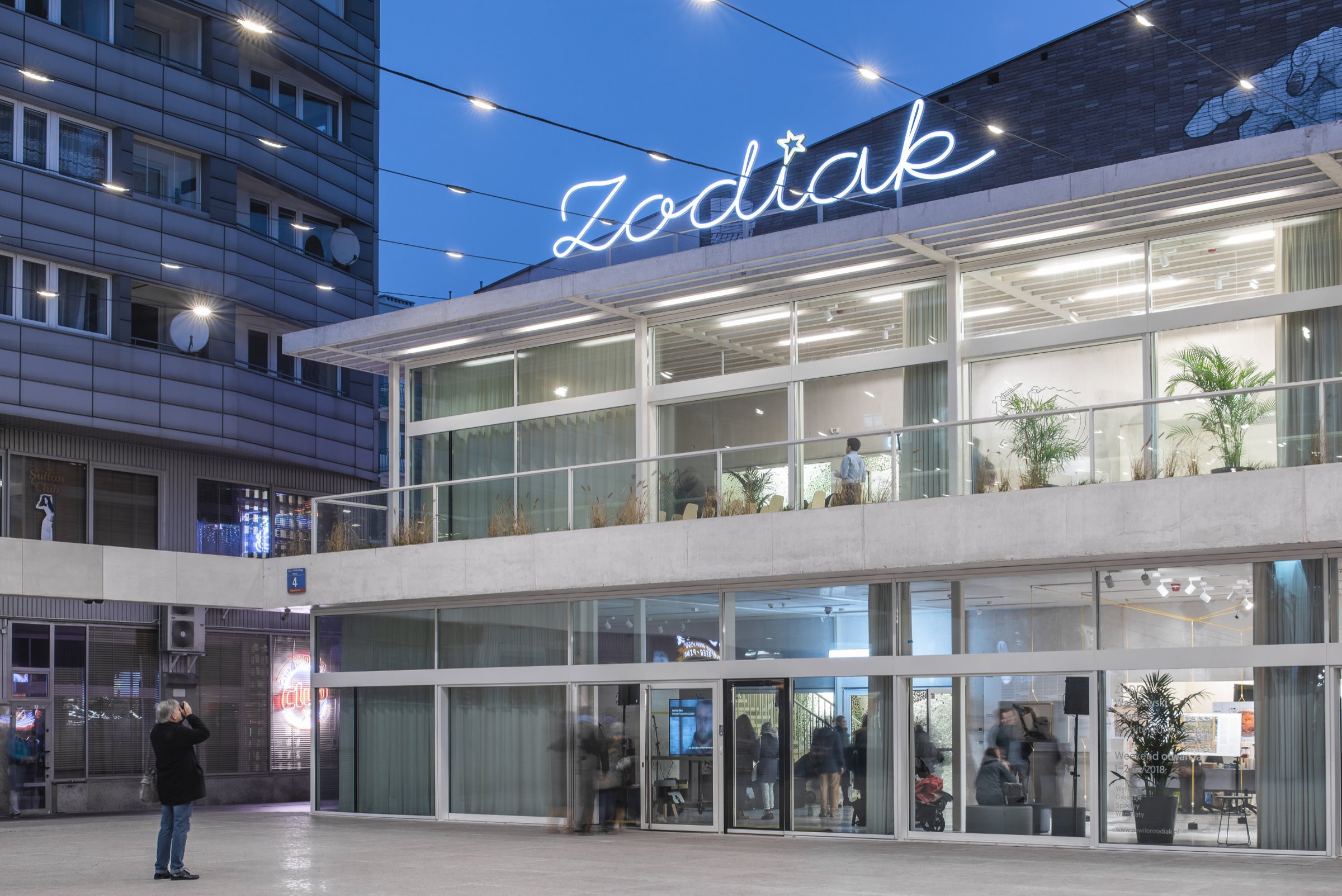

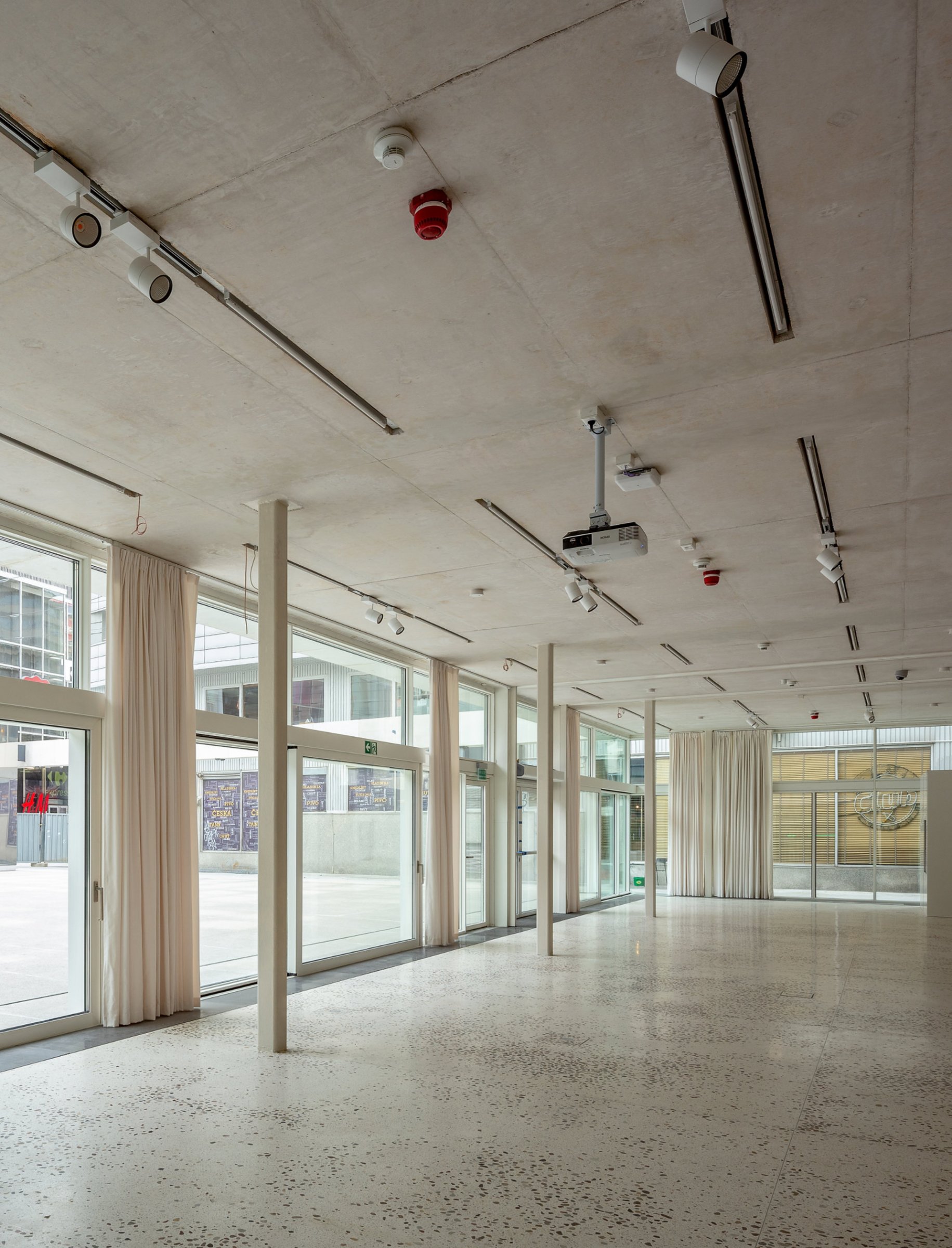

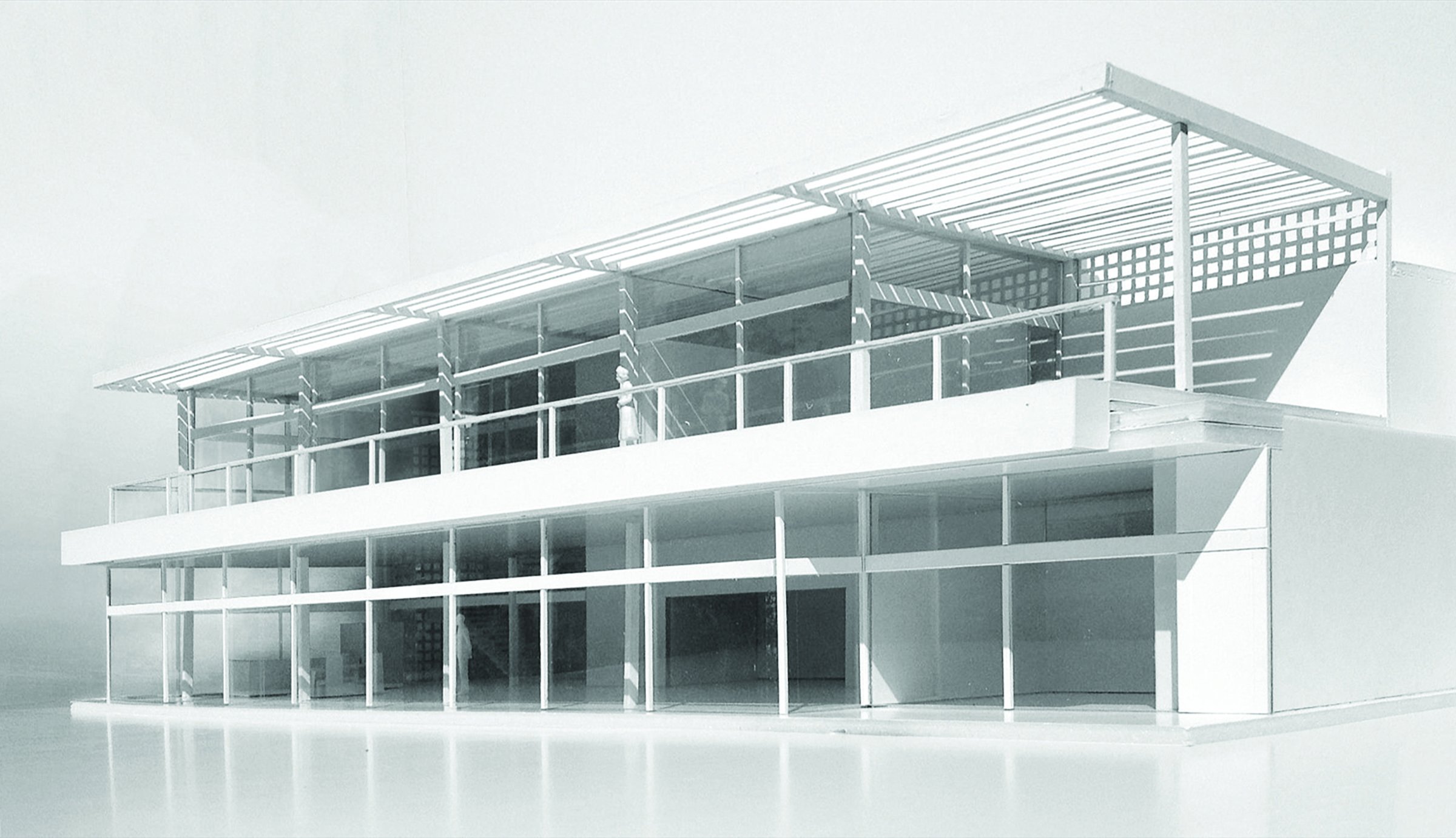

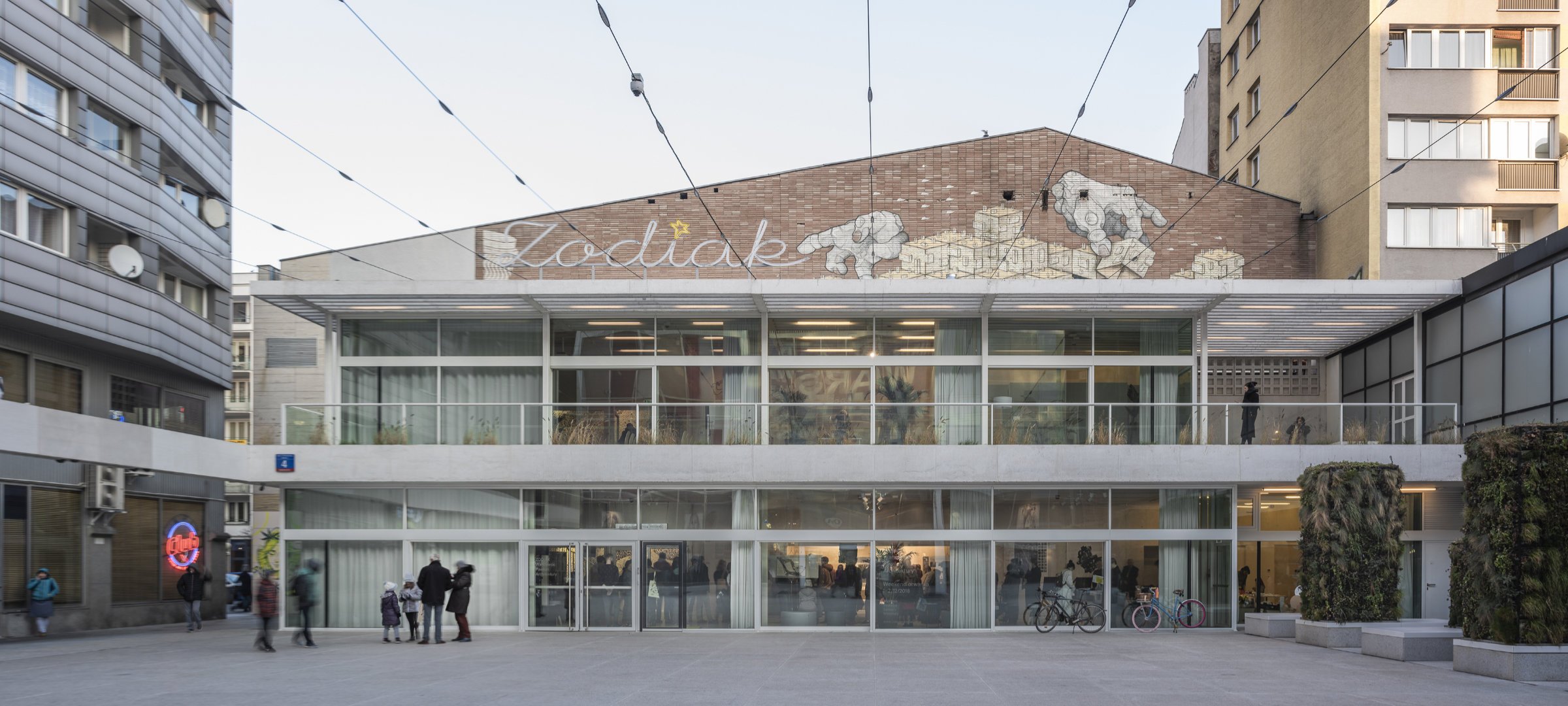

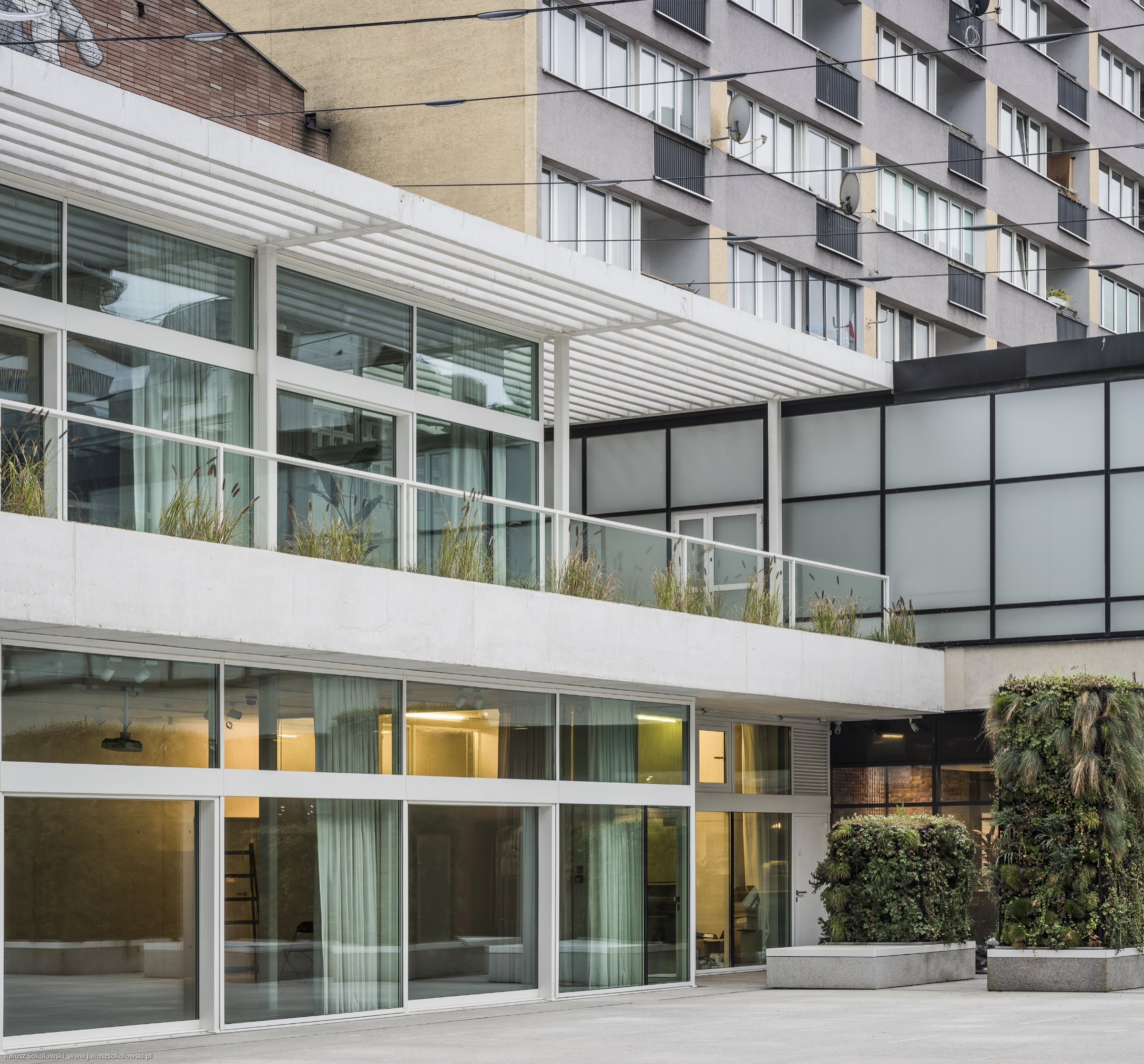

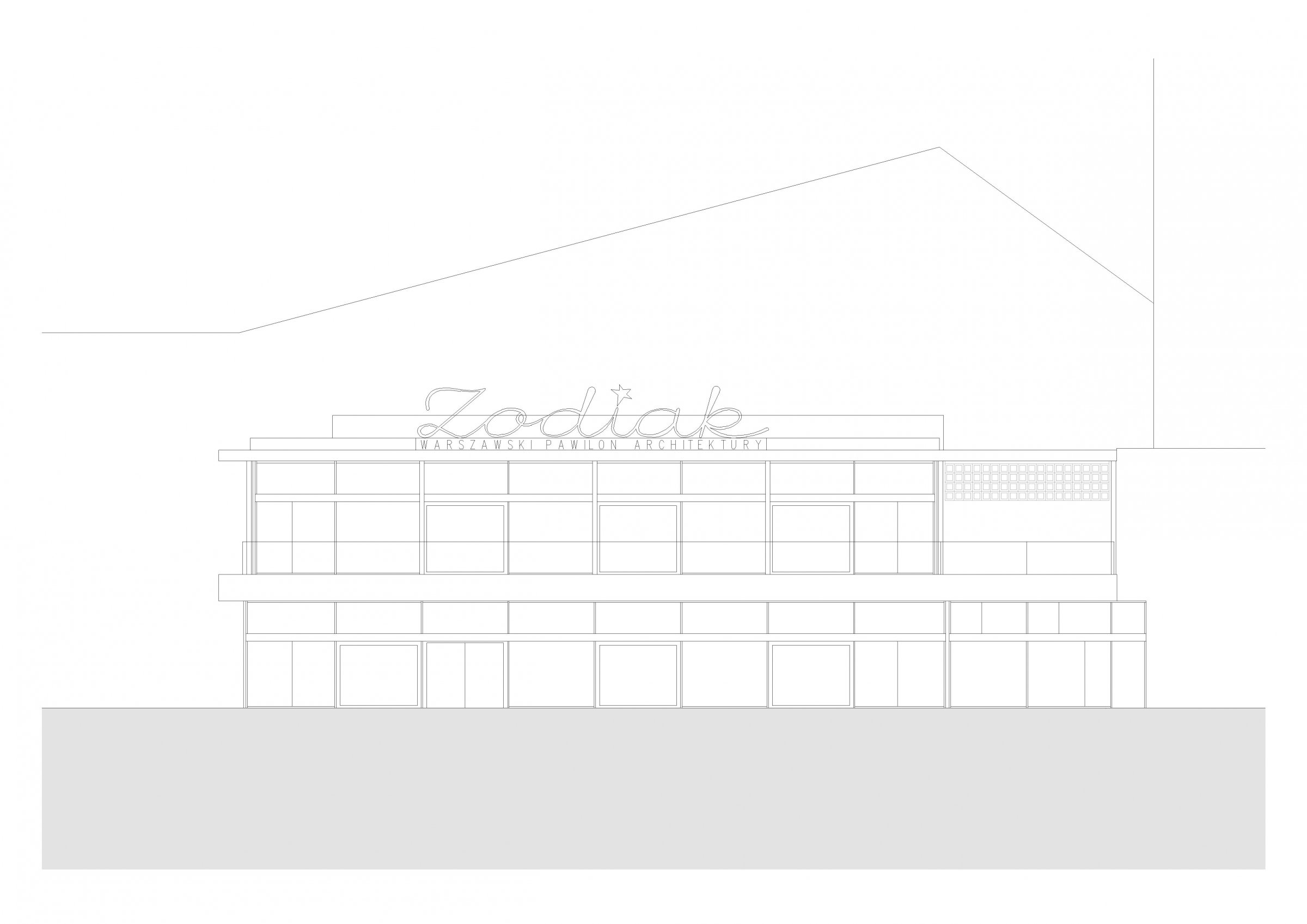

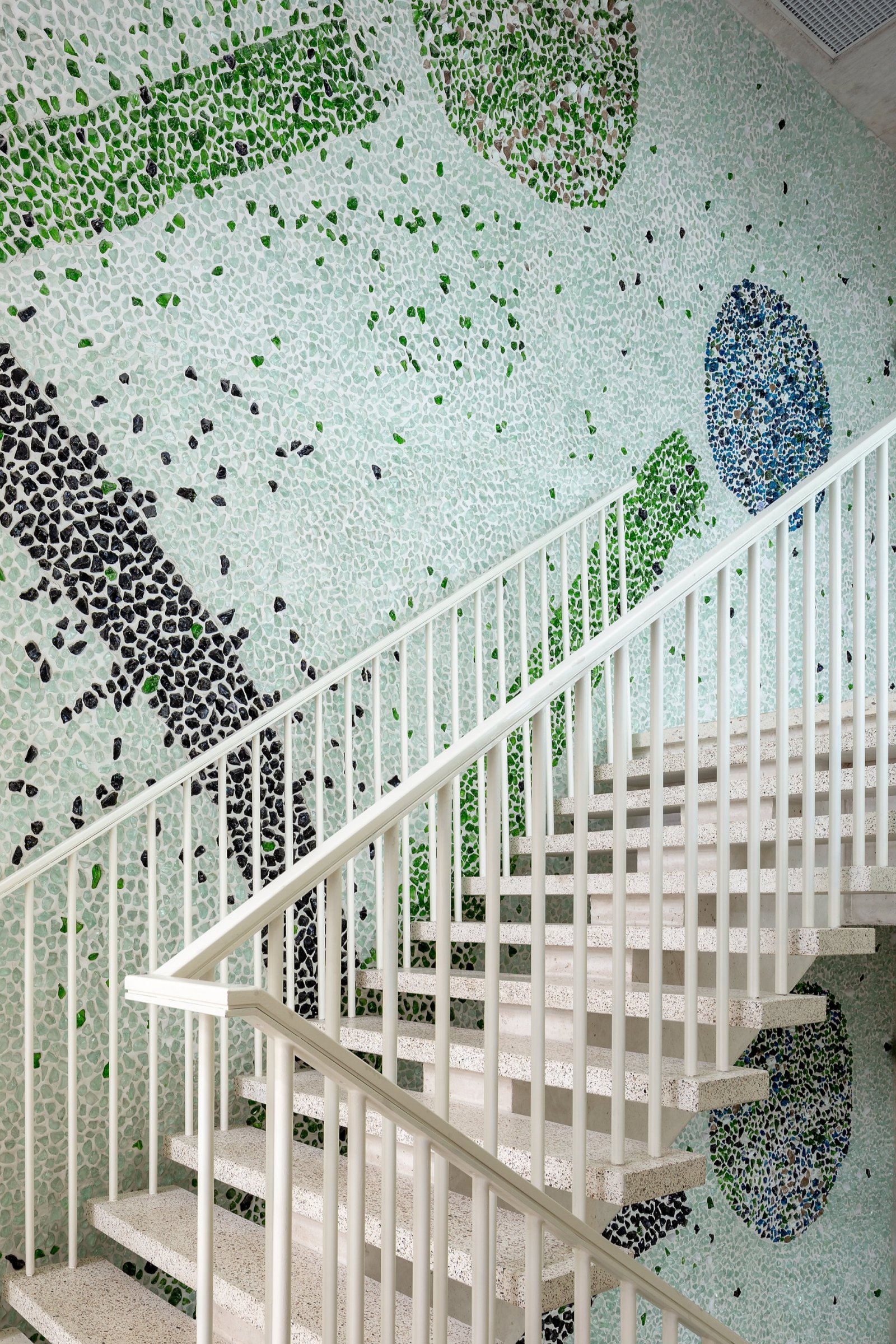

The Zodiak Pavilion recaptures a piece of Warsaw’s unique modernist character, dating back half a century. Modernist architecture thrived in Warsaw after the devastation of WWII, but sank into decline in the communist era, then gave way to international styles during Poland’s transition. The new Zodiak Pavilion seeks to reinterpret part of Warsaw’s identity as a revitalization of part of a modernist project from 1968. The old Zodiak design by Jan Bogusławski and Bohdan Gniewiewski consisted of a restaurant building plus a one-story pavilion, featuring a rooftop café terrace with a reinforced-concrete pergola. When the main building was remodelled in the 1990s, the pavilion’s well-known pergola was dismantled; its characteristic neon sign and glass mosaic by Maria Leszczyńska, the outdoor steps, and elements of the Wiecha Passage’s street furniture were all removed, together with the fountain in front. The Investor’s guidelines for this project called for the former Pavilion to be readapted as a cultural space and for an additional storey to be added (as office space for the Polish Association of Architects and city officials). The new Zodiak is meant to promote Warsaw as well as architecture in general. As the small pavilion is situated in the very heart of Warsaw, amid dense development and at the juncture with three other buildings, its revitalization posed a true challenge. The overarching objective was to preserve the original character of the building: a light pavilion of white concrete featuring an openwork pergola, slender columns, a transparent façade, and an artistic mosaic. The main difficulty was managing to preserve these ideas while meeting the Investor’s occupancy requirement of 250 people, which meant that a large number of building installations needed to be fit inside such a small, fully glazed pavilion with southwestern exposure. Part of the innovative solution involved placing the ventilation ducts, fan coil units and other installations not within a suspended ceiling, as is typically done, but rather under a raised terrazzo floor. This made it possible to preserve the lightweight character of the old pavilion, with the formerly exposed pergola becoming a ribbed reinforced concrete ceiling within the volume of the new upper floor.
